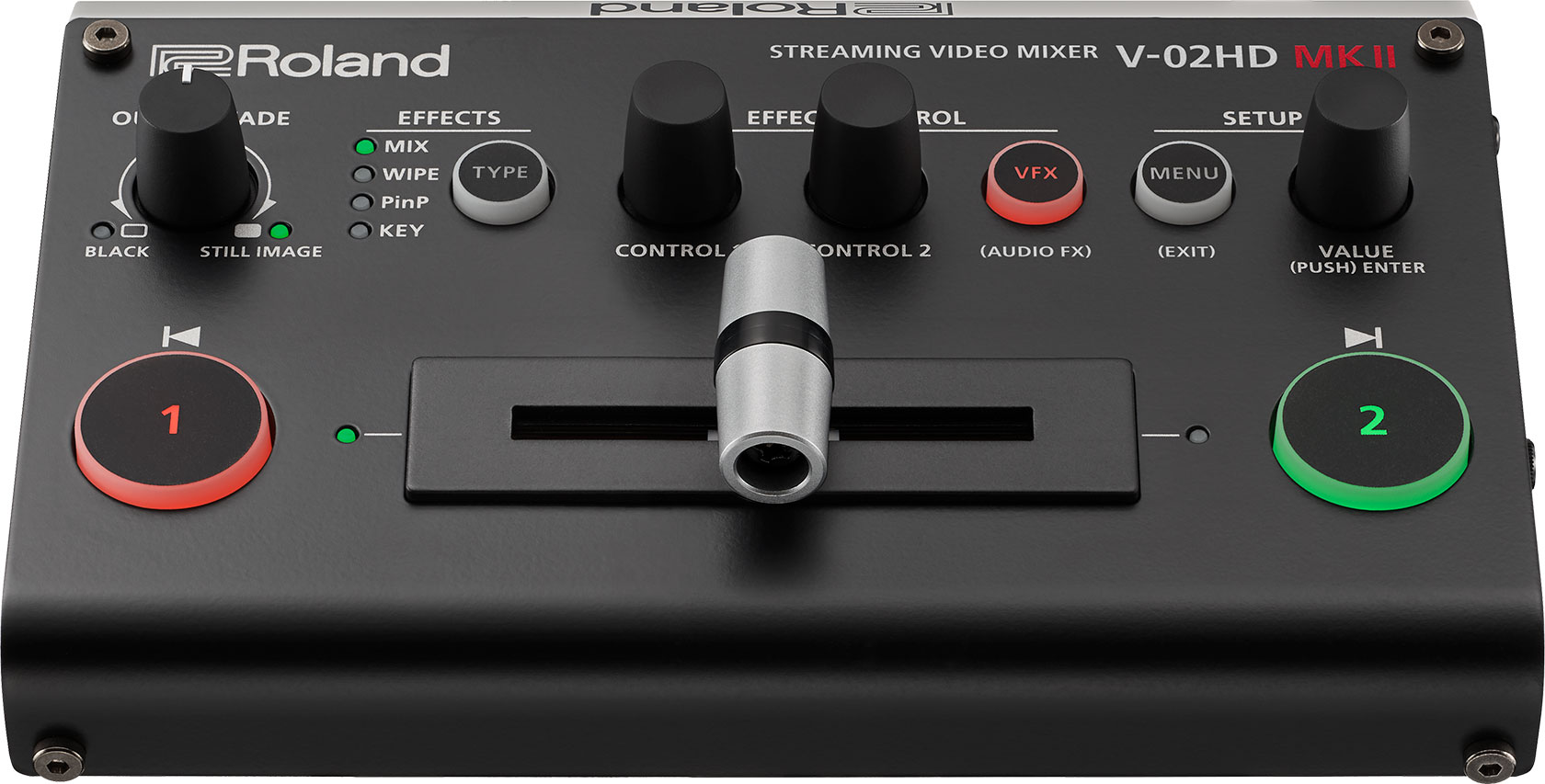

Roland V-02HD MK II Streaming Video Mixer
Two-camera streaming mixer that gets you live in minutes — plug in two HDMI sources, connect USB-C to your computer, and go. T-bar fader, built-in effects, and a 10-channel audio mixer, no extra computer horsepower required.
6 in stock
Two cameras in, one clean stream out
The V-02HD MK II switches between two HDMI sources — cameras, computers, consoles, whatever you've got — and sends the result straight to your computer over USB-C as a standard webcam feed. Facebook, YouTube, Twitch, Zoom, OBS, StreamYard: it just shows up as a camera, no drivers, no separate capture box.
Built for people who don't want to think about it

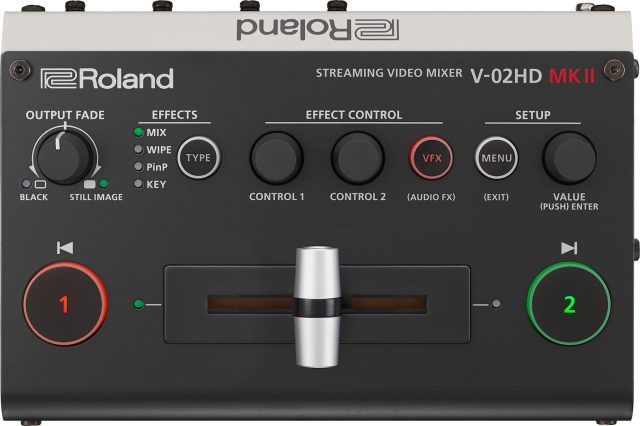

Big buttons, a real T-bar fader, dedicated transition and effect controls. You don't need broadcast experience to run this live — plug in two HDMI sources, launch your streaming software, pick the V-02HD MK II as your camera, and you're on air.
Audio that doesn't need a separate mixer
Two 3.5mm inputs handle mics (including plug-in-power lavaliers) or line-level sources, and you can pull embedded audio straight off your HDMI cameras too. Compressor, EQ, reverb, noise gate, and a voice changer are built in — a full 10-channel digital mixer in a box this size.
Room to grow
Program and Preview outputs let you feed external monitors or a second recording device. Two optional BOSS footswitch inputs free up your hands for camera cuts, transitions, and picture-in-picture during a solo stream. Pair it with Roland's AeroCaster Switcher app (included) to bring in up to five wireless phone or tablet cameras, and control everything remotely from iPad, macOS, or Windows.

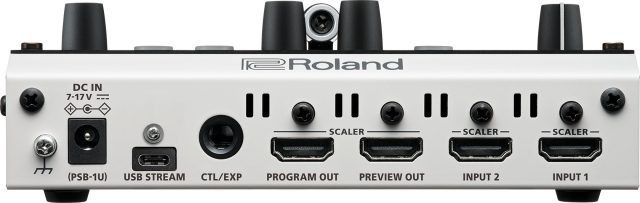

- 2x HDMI inputs (Type A), HDCP and multi-format supported
- Program Out + Preview Out (HDMI Type A)
- USB-C streaming output — appears as a standard UVC webcam, up to 1080p/60
- 4:4:4 (Y/Pb/Pr), 10-bit video processing
- Transitions: Cut, Mix/Dissolve, Wipe (9 types)
- Composition: Picture-in-Picture (rectangle, circle, diamond), Luminance/Chroma Key
- 14 built-in visual effects (mosaic, wave, chroma replace, posterize, and more)
- 2x 3.5mm audio inputs with plug-in power, plus embedded HDMI audio mixing
- 10-channel digital audio mixer: compressor, EQ, reverb, noise gate, de-esser, voice changer
- Stereo headphone output (3.5mm)
- CTL/EXP input for up to 2 BOSS footswitches or an expression pedal
- 8 preset memories, panel lock, EDID emulator, auto input detect
- External AC power adapter, 12.6 W consumption
- Dimensions: 160 x 108 x 51 mm — Weight: 0.6 kg (excl. adapter)
