Blackmagic

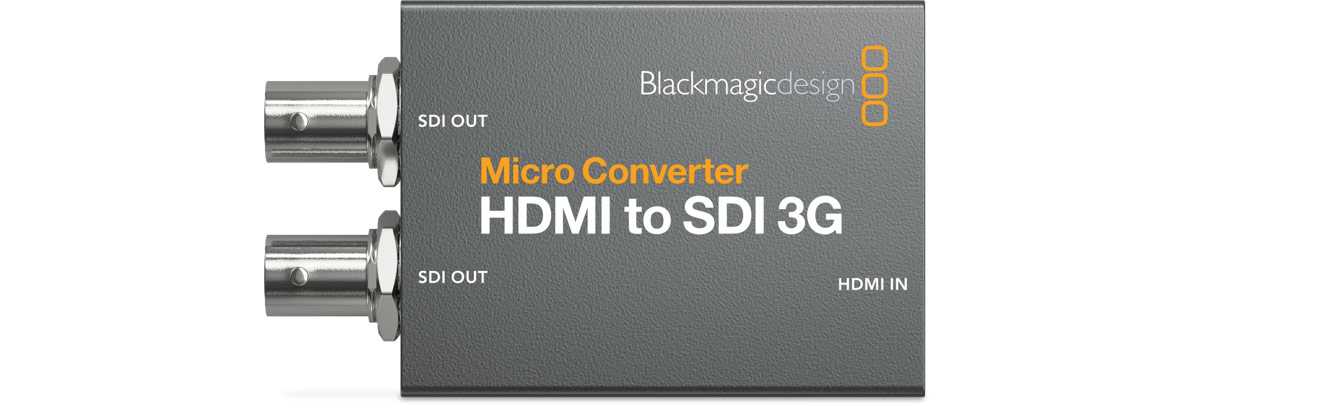

Blackmagic Micro Converter HDMI to SDI 3G
SKU: CONVCMIC/HS03G
Compact HDMI to 3G-SDI converter with dual SDI outputs, level A/B selectable, USB-C powered.
56,05 € excl. VAT
58,57 € incl. VAT
2 in stock
The Micro Converter HDMI to SDI 3G connects an HDMI camera or computer output to professional SDI equipment, outputting two SDI feeds that automatically match the incoming HDMI format — SD, HD or 3G-SDI, with 3G-SDI selectable as level A or B. It handles the film rates a cinema workflow needs, including 1080p24, 1080p47.95 and 1080p48, not just standard broadcast frame rates.
No separate power supply is included — it draws power over the same USB-C connector used for firmware updates and configuration, keeping the footprint as small as possible for tight camera rigs or a bag of adapters.
| Input | 1x HDMI Type A |
|---|---|
| Outputs | 2x SDI (SD/HD/3G-SDI, auto-matches HDMI input, level A/B selectable) |
| Formats | SD (525i59.94, 625i50), HD 720p (50/59.94/60), 1080p (23.98–60), 1080i (50/59.94/60) |
| SDI compliance | SMPTE 259M, 292M, 296M, 424M, 425M |
| Color | 4:2:2, YUV, auto-detects SD/HD/3G-SDI |
| Power | USB-C, 2W, 4.4–5.25V DC (no PSU included) |
| Operating temp | 0–40°C |
| Warranty | 3 years |
